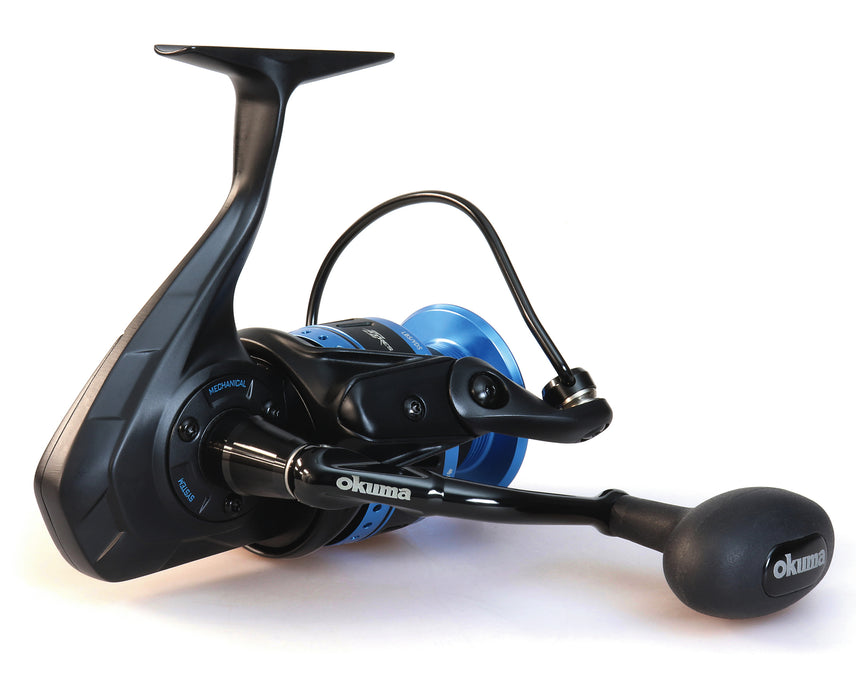

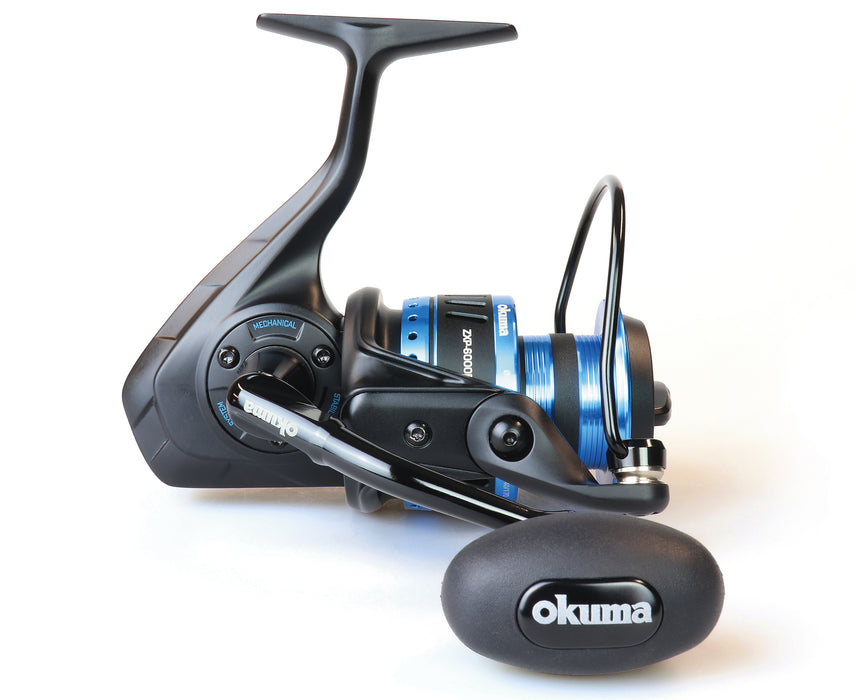

OKUMA AZORES XP SPIN REEL

SKU ZXP-4000H
$229.90
$229.90 - $269.90
Current price $229.90
Original price $229.90 - Original price $269.90
Original price
Model: ZXP-4000H

Saltwater stopping power in low and high speed models, the Azores XP range fits the brief for anglers who regularly chase larger, aggressive saltwater species.

Lower geared models (P) are ideal for increased outright cranking power, while high geared models (H) provide the quicker retrieve speeds and line pickup required for different techniques and target species.

High density gearing and machine-cut brass pinion gear roll on high performance, grease-packed stainless bearings for a smooth, precise and solid mechanical system. A hydro-blocked hybrid drag delivers consistent, smooth and powerful resistance against hard-running fish. The machined screw-in handle ensures a positive connection, while the machined large-capacity spool features Okuma's LCS lip for more casting distance and accuracy.

Comes with a 10 Year Limited Warranty

  • 6HPB + 1RB corrosion resistant stainless steel bearings
  • Precision Dual Force Multi-disc Drag system with Carbonite and felt drag washers
  • Hydro Block water tight drag seal
  • Quick-Set anti-reverse roller bearing plus ratchet system
  • Dual anti-reverse system for maximum security
  • Precision machine cut brass pinion gear
  • HDGII: Corrosion resistant high density gearing
  • CRC: Corrosion?resistant coating process
  • ALC: Rigid diecast aluminium body, side plate and rotor
  • MSS: Carbon Mechanical Stabilizing System

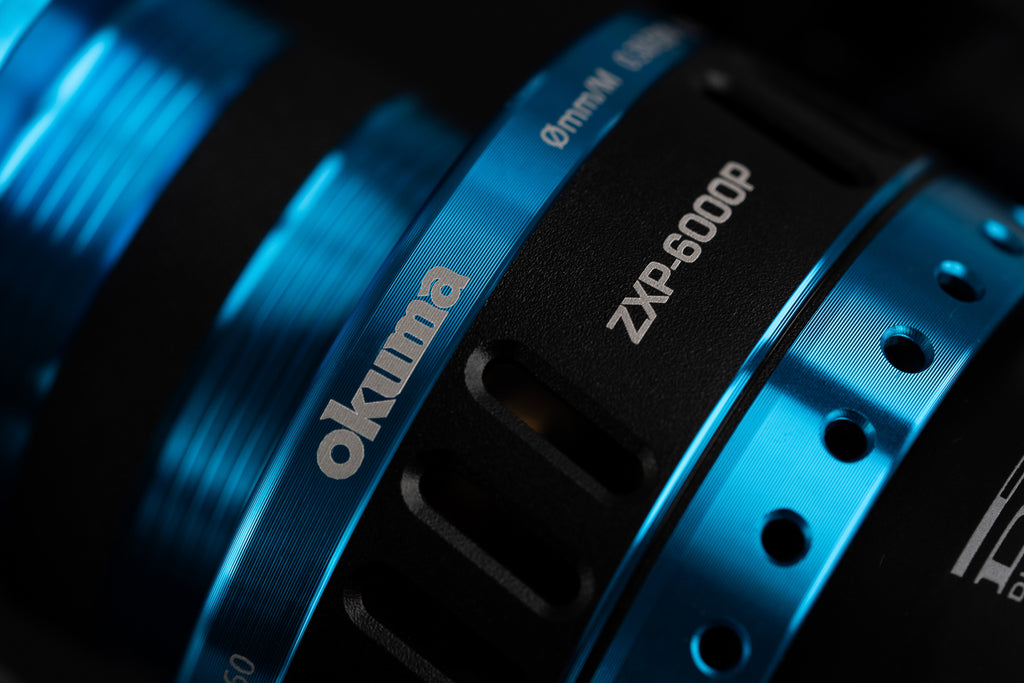

  • Machined aluminium anodised spool with LCS lip
  • Machined aluminium handle arm
  • Heavy duty solid aluminium bail wire
  • Comes with a 10 Year Limited Warranty

Comes with a 10 Year Limited Warranty

To register your Okuma reel click | Warranty Registration

AZORES XP SPINNING REEL

RIGID LIGHTWEIGHT SALTWATER SPIN REEL

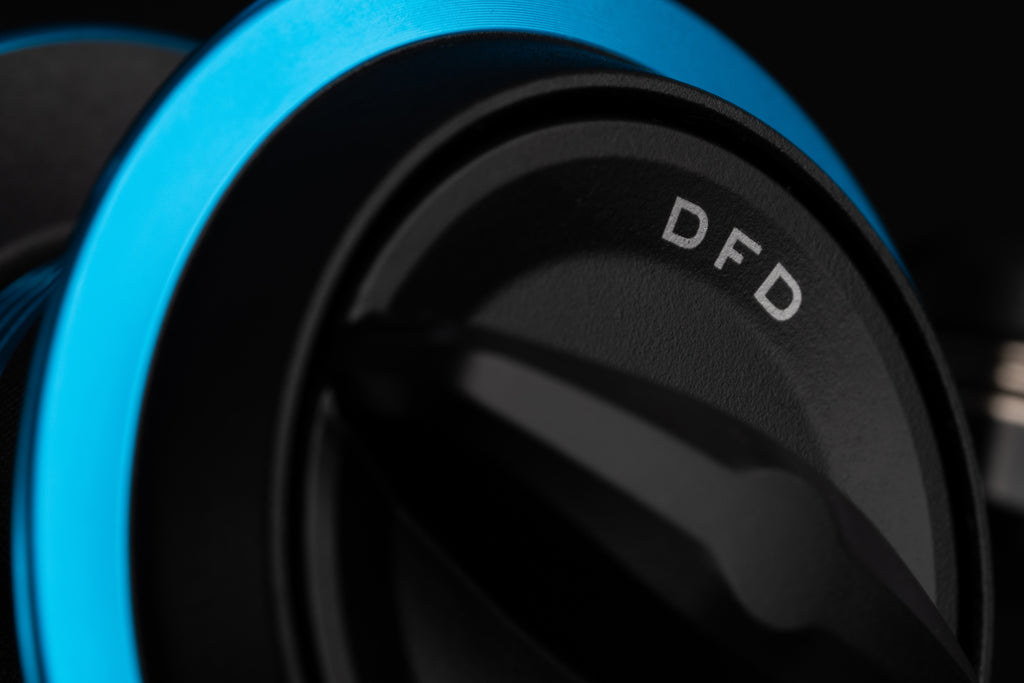

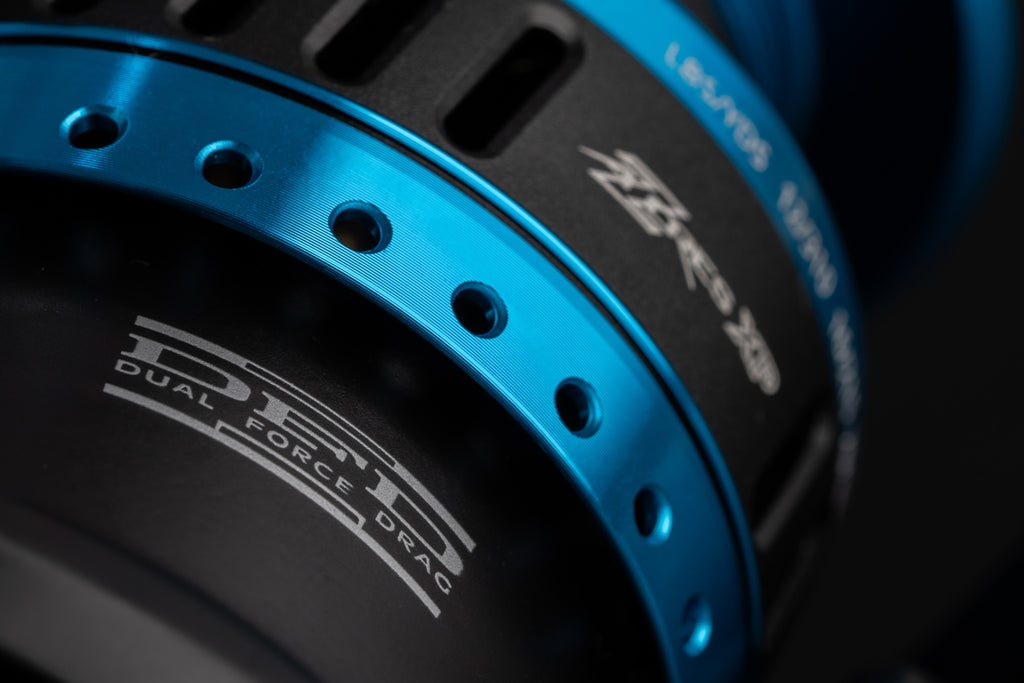

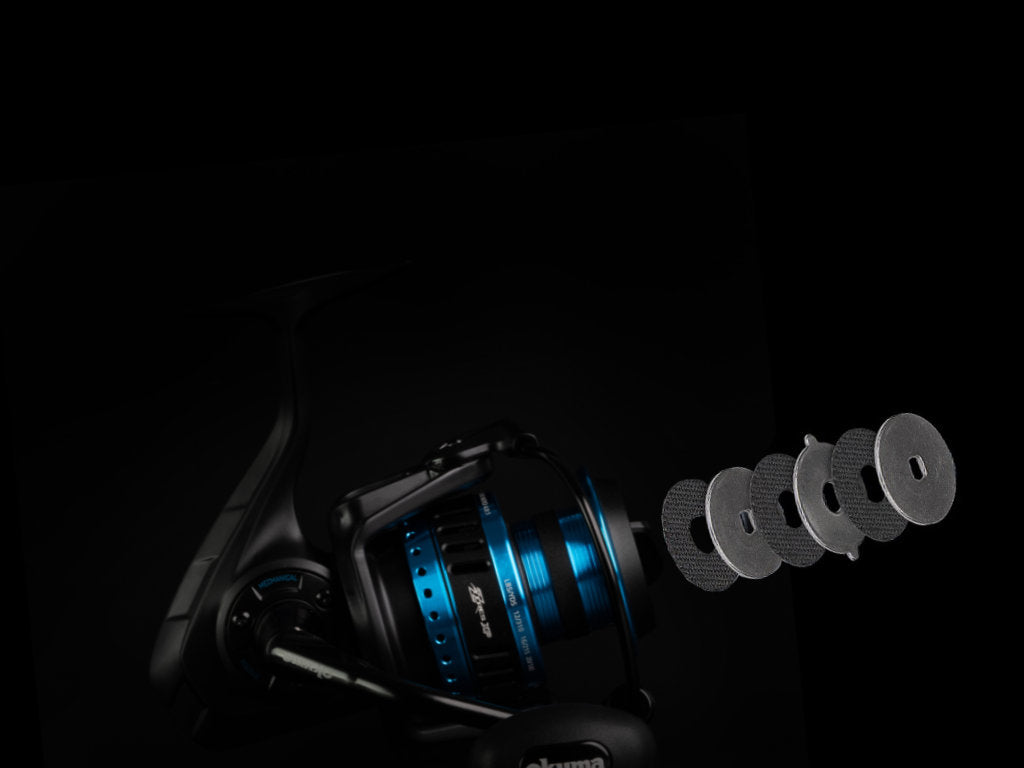

DUAL FORCE DRAG SYSTEM

DFD incorporates both surfaces of the spool to maximise high-end drag pressure, efficiency & overall smoothness. Mounted in the top of the spool and protected by the Hydro Block system is a multi-disc felt drag system that works in conjunction with a secondary drag system that is mounted under the spool. Even pressure is applied to both surfaces of the spool for maximum stability and significantly increased drag output compared to traditional single drag systems.

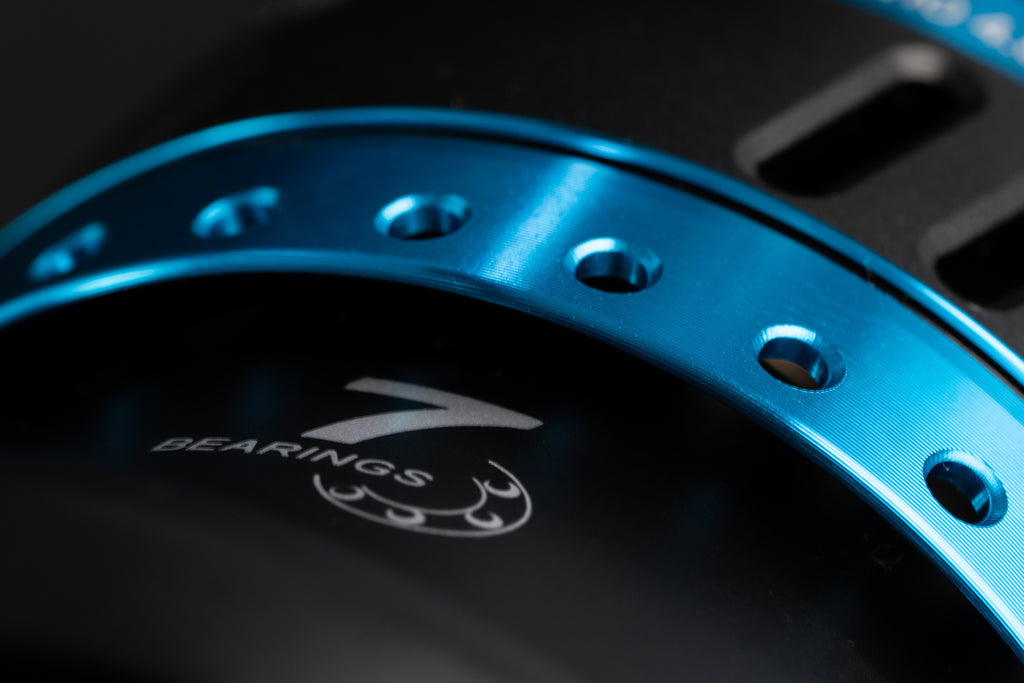

HIGH PERFORMANCE BEARING (HPB)

6 high performance ball bearings provide Cedros with outstanding smoothness and reliability in saltwater fishing environments. The balls used on the HPB's are constructed from the same high-grade stainless steel material as the bearing housing.

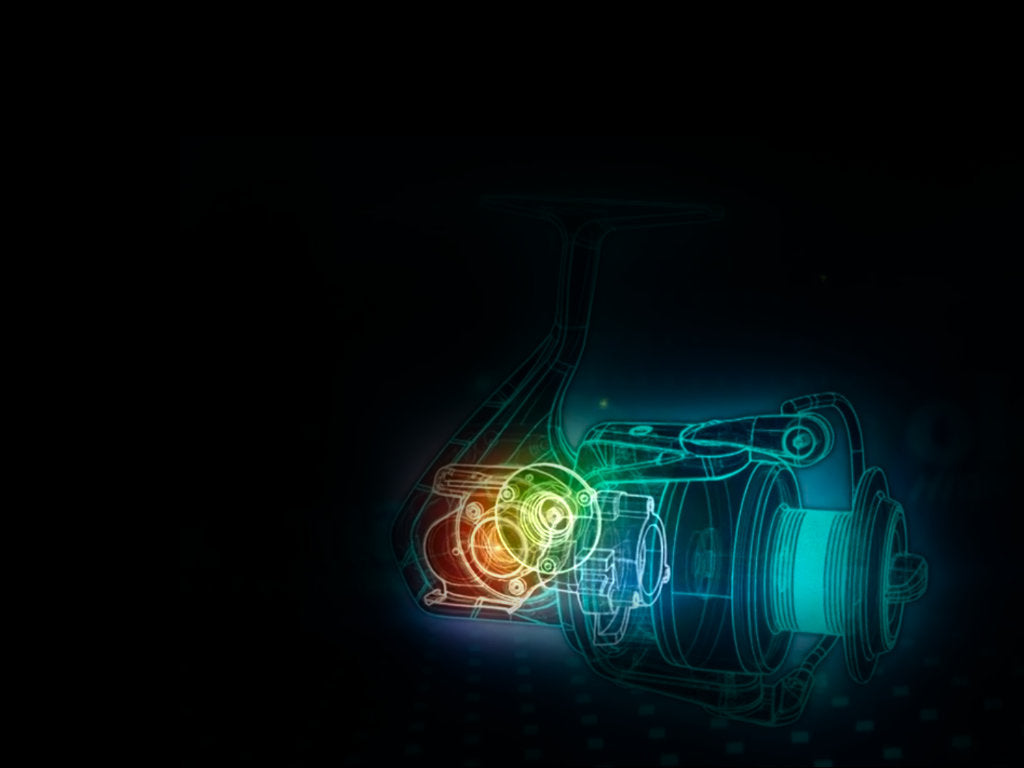

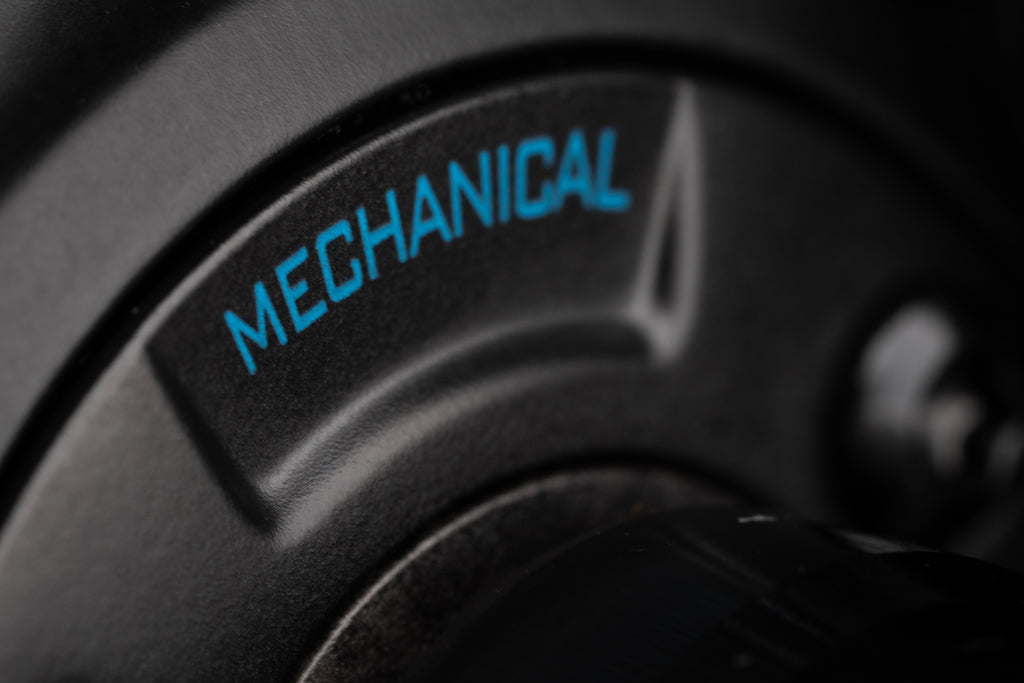

MECHANICAL STABILISING SYSTEM

Patented design stabilizes the spool shaft at 3 key stress points to eliminate flex under pressure - reel is more durable, strong and smoother than the competition.

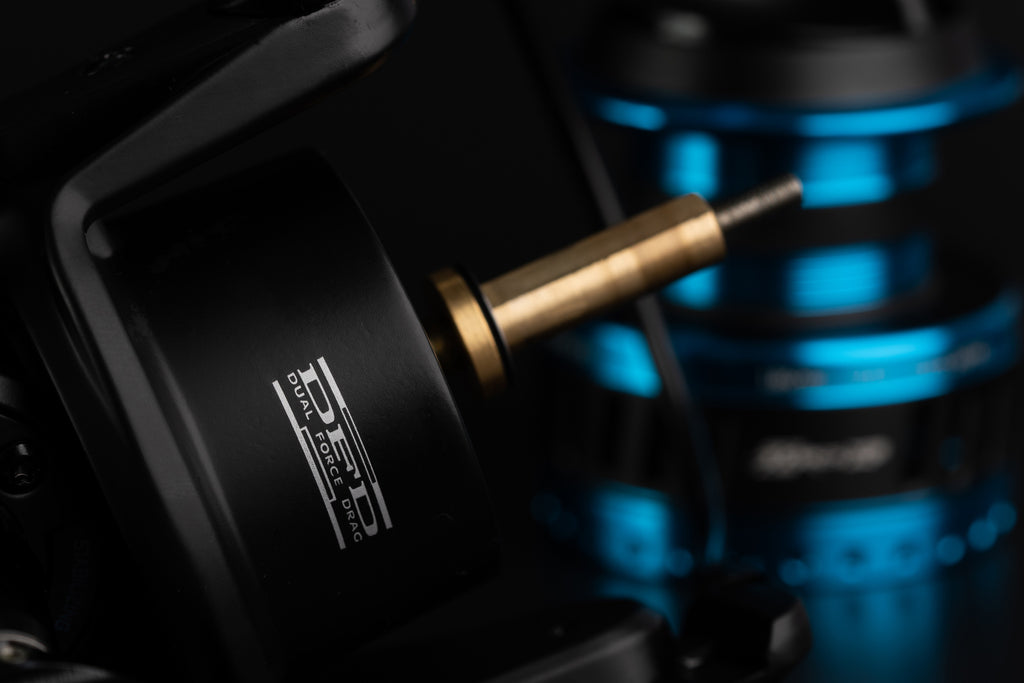

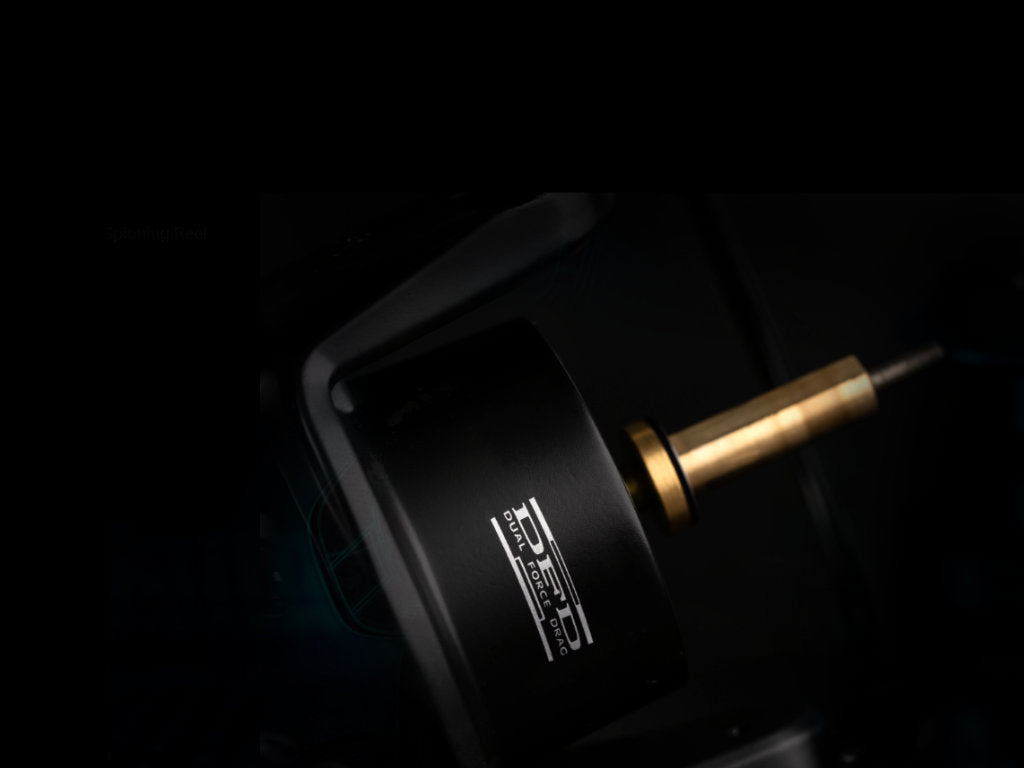

oversized spool shaft

This design reduces flex, improves performance and durability. This design is incorporated into the hydro sealed body and Dual Force Drag (DFD) system. The oversized spool shaft contributes to the reel's overall strength and durability, particularly in demanding saltwater environments.

HDG-II

HDG-II

High Density Gearing II Oversize Main Gear. HDG-II sets a new standard with a minimum of 7% increase in size, enhanced strength, and a higher gear ratio, HDG-II is engineered to be the most all around gear on the market.



View Video

Product Table

model gear ratio bearings weight retrieve max drag line capacity: dia. mm/metres
ZXP-4000H 5.8:1 6HPB+1RB 335g 91cm 13kg 0.25/290    0.30/200    0.35/150
ZXP-6000P 4.8:1 6HPB+1RB 526g 87cm 13kg 0.30/300m   0.35/220m   0.40/170m
ZXP-6000H 5.8:1 6HPB+1RB 526g 105cm 13kg 0.30/300m   0.35/220m   0.40/170m
ZXP-8000P 3.8:1 6HPB+1RB 720g 77cm 20kg 0.40/250m   0.45/200m   0.50/160m
ZXP-8000H 5.4:1 6HPB+1RB 720g 110cm 20kg 0.40/250m   0.45/200m   0.50/160m
ZXP-14000P 3.8:1 6HPB+1RB 738g 84cm 20kg 0.40/370m   0.45/290m   0.50/240m
ZXP-14000H 5.4:1 6HPB+1RB 738g 120cm 20kg 0.40/370m   0.45/290m   0.50/240m
